AG focused flange manufacture 28 years production experience,delivery time guaranteed,ISO,TUV/PED,DNV,BV,VD-TUV certificated,these are how we keep good quality and competitive prices for global valued customers.We supply DIN 2566 PN16 ZINC threaded flange.Believe the power of professionalism.

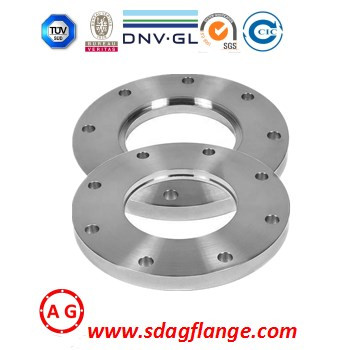

1.Product Introduction of DIN 2566 PN16 ZINC threaded flange
AG manufacture DIN 2566 PN16 ZINC threaded flange.All procedure of produce included heating-treatment and proof machining are completed in own forged shop、heat-treatment shop and machining shop.The annual capacity is 10,000 tons.
2.Product Specification of DIN 2566 PN16 ZINC threaded flange
Name-- DIN 2566 PN16 ZINC threaded flange
Size -- 1/2" -80"
Type -- weld neck flange ,long weld neck flange , slip on flange ,socket weld flange, threaded flange,blind flange,orifice flange ,lap joint flange ,plate flange ,etc.
Face--RF, FF, MF, MFM, RJ, TG, RTJ, SRF
Thickness--Class 150Lbs, 300Lbs, 600Lbs, 900Lbs, 1500Lbs, 2500Lbs, /PN6,PN10,PN16,PN20,PN25,PN40/ Class A, B, C, D, E
Standard --ASME B16.5, ASME B16.47, ASME B16.36,DIN 86341-2000, DIN2505,etc
Material -- Carbon Steel--ASTM A105, Q235,
Low temperature carbon steel--A350LF2,A350LF3,
Equipment -- numerically controlled lathe
Test-- ultrasonic flaw detection
Application--Petroleum, chemical, machinery, electric power, shipbuilding, papermaking, construction, etc
3. Dimension chart of DIN 2566 PN16 ZINC threaded flange
4.Product Qualification of DIN 2566 PN16 ZINC threaded flange
How to guarantee the traceability of the product is done from the raw material order to the delivery?
Through the complete production process and strict quality control, key data is collected during the production process of the product, and finally a unique product serial number can be used to trace all the key information of each product production process:Material batch, supplier, operator, working place (workshop, production line,work station, etc.), processing technology (temperature, resistance, voltage, torque, etc.), processing equipment information, working time and other information.
5.Packing of DIN 2566 PN16 ZINC threaded flange
We can supply DIN2632 PN10 Weld Neck Flange packed with plywood pallets ,plywood cases or as per customer's requirements.Special packaging is also available, such as fumigation wooden pallet and wooden cases.
