We supply GALVANISED BLANK FLANGE PN16 to BS4504 BLIND FLANGE, with 25 years production experience and over 8 years sales abroad.We have a lot of high-quilty staff in the forging process which included forging,heat treatmeant,maching and inspection.We can finish the whole forging process in our plant,and we can save production cost.So our prices are very competitive.

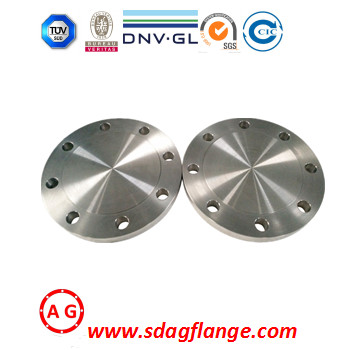

1.Product Introduction of the GALVANISED BLANK FLANGE PN16 to BS4504 BLIND FLANGE
This pipe flange blind is the hot demand.Our comprehensive process involves material souring,forging,heat treatment,maching tooling,quality inspection,mechanical typing and package.
|
Standard |
BS 4504,EN1092-1,DIN,UNI |
|||
|
Size |
1/2"-24" |
|||
|
Material |
Carbon Steel |
|||
|
Type |
SLIP ON PLATE / TYPE 01 |
DN15-DN2000 |
PN6-PN100 |
FF,RF |
|
LOOSE, LAPPED / TYPE 02 |
DN15-DN2000 |
PN6-PN16 |
FF |
|
|
BLIND, BLANK / TYPE 05 |
DN15-DN2000 |
PN6-PN100 |
FF,RF |
|
|
WELD NECK / TYPE 11 |
DN15-DN2000 |
PN6-PN40 |
RF |
|
|
SLIP ON BOSSED / TYPE 12 |
DN15-DN2000 |
PN6-PN40 |
RF |
|
|
THREADED / TYPE 13 |
DN15-DN150 |
PN6-PN16 |
RF |
|
2.Product Parameter (Specification) of the GALVANISED BLANK FLANGE PN16 to BS4504 BLIND FLANGE
We supply Pipe Flange Blind.
|
Standard |
BS10,AS2129 |
|
|
Size |
1/2"-24" |
|
|
Materia |
Carbon Steel |
|
|
Sealing Surface |
FF |
|
|
Type |
SLIP ON PLATE,BLIND, BLANK,SLIP ON HUB, |
|
|
Pressure |
Table D, E, F, H |
|
|
Standard |
GOST 12820-80,GOST 12821-80,GOST 12836-67 |
|||
|
Type |
Sealing Surface |
Size |
Pressure |
|
|
SLIP ON PLATE |
FF,RF |
DN15-DN2000 |
PN0.6MPa-PN10MPa |
|
|
WELD NECK |
RF |
DN15-DN2000 |
PN0.6MPa-PN10MPa |
|
|
BLIND,BLANK |
FF,RF |
DN15-DN2000 |
PN0.6MPa-PN10MPa |
|
|
Standard |
AANS 1123 |
||
|
Type |
Sealing Surface |
Size |
Pressure |
|
SLIP ON PLATE |
FF, RF |
NB15-NB2000 |
600kPa-4000kPa |
|
WELD NECK |
RF |
NB15-NB2000 |
600kPa-4000kPa |
|
SLIP ON BOSSED |
FF, RF |
NB15-NB2000 |
600kPa-4000kPa |
|
BLIND,BLANK |
FF, RF |
NB15-NB2000 |
600kPa-4000kPa |
|
THREADED |
FF, RF |
NB15-NB600 |
600kPa-4000kPa |
3.Product Feature And Application of the GALVANISED BLANK FLANGE PN16 to BS4504 BLIND FLANGE
Pipe flange blind,Blind flange, it is not in the middle of the hole, the role is to close the pipeline or cut off the pipeline, mainly used for pipe end or head.Sealing face form has plane, protruding face, concave-convex face, tenon groove face and ring joint face.
4.Product Details of the GALVANISED BLANK FLANGE PN16 to BS4504 BLIND FLANGE
Forged Flange
1) ANSI B16.5, ASME B16.5/B16.47 flange
Size:1/2"- 80" DN15 - DN2000
Type:WN, SO, BL, SW, threaded, lap-joint，customized
Pressure:150#, 300#, 600#,900#,1500#, 2500#
Material:Carbon steel A105
Coating:black paint, yellowt paint, cold and hot dip galvanize
2) EN1092-1flange
Size:DN15- DN2000
Type:01(plate flange), 02(loose flange), 05(blind flange), 11(welding necking),
12(slip on flange), 13( threaded flange)
Pressure:PN6, PN10, PN16, PN25, PN40, PN64, PN100
Material:Carbon steel C22.8, S235, S235JR,P235GH, P245GH,P250GH,P280GH,P265GH.
Coating:black paint, yellow paint, cold and hot dip galvanize
3) DIN flange
Size:DN15- DN2000
Type:slip on flange DIN2573,2576,2502,2503, 2543,2545
welding neck falnge DIN2631, 2632,2633,2634,2635
blind flange DIN 2527
threaded falnge DIN2565,2566,2567,2567
loose flange DIN 2641,2642,2656,2673
Pressure:PN6,PN10,PN16,PN25,PN40
Material:Carbon steel ST37.2/S235JR,C22.8
4) GOST flange
Size:DN15-DN 2000
Type:plate falnge 12820-80, welding neck flange 12821-80
Pressure:PN6, PN10, PN16, PN25, PN40
Material:Carbon steel CT-20.
Coating:rust-proof oil, cold and hot galvanize
5) JIS B2220 flange
Size:15A-2000A
Typen:SOP, BIND, SOH,
Puressure:1K, 2K, 5K, 10K, 16K, 20K, 30K, 40K
Material:Carbon steel SS400
Coating:rust-proof oil, cold and hot galvanize
5.Product Qualification of the GALVANISED BLANK FLANGE PN16 to BS4504 BLIND FLANGE
Our company,AG,has passed DNV, TUV, BV, KR, ISO VDTUV certification. Our flanges are manufactured according to ANSI, EN1092-1, JIS, DIN, SABS, GOST, ASA2129 standard etc. We also have VMC/CNC machine, could produce the special flange according to drawing.
6.Deliver,Shipping And Serving of the GALVANISED BLANK FLANGE PN16 to BS4504 BLIND FLANGE
Pipe flange blind ,all products ordered are hot shot delivers and best post-sale service as well as reliable credit standing.
7.FAQ
Q:What is AG’s role in the supply chain?
A:We are the manufacturer and exporter of the forged flanges.
Q:What is AG’s mission?
A:We are driven by our customer,our markets and our employees,utiling imprevement,innovation,technology and teamwork,to be the best at satisfying our customers with top quality products,outstanding service and excellent value.
Q:How to guarantee the quality for clients?
A:AG supplies sever quality controls in each step of the forging operation because the satisfaction of our clients is our aim.
Q:How about AG’s delivery term?
A:We offer a 20T FCL for delivery in 35 days.
Q:How much AG’s production cability?
A:1500 tons monthly output
