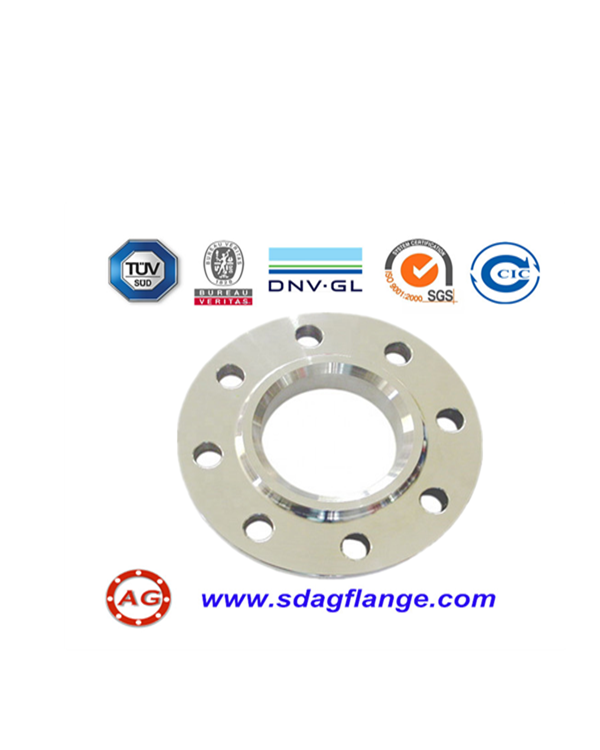

These PN16 EN1092-1 Type13 Flange are developed for use in small diameter,high-pressure lines.They have a counterbore from the hub side slightly larger than the outside diameter of the pipe.AG can produce not only in GB Standard ,also the ANSI,ASME standard, DIN, BS, EN standard and GOST,JIS,SANS, standard.We will keep trying best to supply quality pipe fittings in standard or custom to our clients and partners.
1.Description of PN16 EN1092-1 Type13 Flange
Type: SO Flange
Material: Carbon steel: A105,SS400,SF440 RST37.2,S235JRG2,P250GH,C22.8,
Standard: ANSI,JIS,DIN,BS4504,SABS1123,EN1092-1, UNI,AS2129,GOST-12820
Size: 1/2-78 inch (DN15-DN2000)
Pressure: ANSI class 150,300,600,1500,2500,
DIN PN6,PN10,PN16,PN25,PN40,PN64,PN100,PN160
Packing: No Fumigate or Fumigate Plywood/Wood Pallet or Case
E-catalogue: Available , please visit catalogue of flange
Usage: Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects etc.
2. Test of PN16 EN1092-1 Type13 Flange
Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector.
3. Usage of PN16 EN1092-1 Type13 Flange
·They are ideal for small diameter applications.
·They are used for high pressure applications.
·Socket weld flanges have an internal recess on the inside diameter which allow for a smoot flow of the process fluid.
·They create a smooth bore with the proper welding and grinding.
4.Product Qualification of PN16 EN1092-1 Type13 Flange.
How to guarantee the traceability of the product is done from the raw material order to the delivery?
Through the complete production process and strict quality control, key data is collected during the production process of the product, and finally a unique product serial number can be used to trace all the key information of each product production process:Material batch, supplier, operator, working place (workshop, production line,work station, etc.), processing technology (temperature, resistance, voltage, torque, etc.), processing equipment information, working time and other information.
5.Packing of PN16 EN1092-1 Type13 flange.
We can supply PN16 EN1092-1 Type13 flange packed with plywood pallets ,plywood cases or as per customer’s requirements.Special packaging is also available, such as fumigation wooden pallet and wooden cases.
